GJ1 (nirps_he_online_udem)

This page was last modified: 2024-09-16 19:11:02.058021 (UTC)

Back to the object table

Contents

• Target info

• Spectrum

• LBL

• CCF

• Time series

Target info

Target Information
RA	1.382299639 [deg] (Gaia DR2)
Dec	-37.36741972 [deg] (Gaia DR2)
Finder chart	[FINDER CHART]
Teff	3478.0 [K] (2020A&A…644A..68M)
Spectral Type	M2V (1982MSS…C03….0H)
Proper Motion (RA)	5633.374183 [mas/yr] (Gaia DR2)
Proper Motion (Dec)	-2334.794425 [mas/yr] (Gaia DR2)
Parallax	230.1331238 [mas/yr] (Gaia DR2)
Radial Velocity	25.534 [mas/yr] (2018A&A…616A…7S)
Aliases	HD 225213, AC2000 3152964, CD-37 15492, Ci 20 3, Ci 18 3161, CPC 18 15, CPD-37 9435, GC 49, GCRV 31, GEN# +1.00225213, G 267-25, GJ 1, HIC 439, HIP 439, IRAS 00027-3737, JP11 3677, LFT 5, LHS 1, LPM 904, LTT 23, 2MASS J00052423-3721257, NLTT 134, NSV 15017, PLX 5817, PLX 5817.00, PM 00025-3736, PM J00054-3721, SAO 192348, TIC 120461526, TYC 6995-1264-1, UBV 20691, UBV M 27443, WEB 60, WISEA J000529.35-372151.0, YZC 29 15, Zkh 2, [GKL99] 1, [RHG95] 6, Gaia DR2 2306965202564506752, Gaia DR3 2306965202564744064, HD225213, AC20003152964, CD-3715492, Ci203, Ci183161, CPC1815, CPD-379435, GC49, GCRV31, GEN#+1.00225213, G267-25, GJ1, HIC439, HIP439, IRAS00027-3737, JP113677, LFT5, LHS1, LPM904, LTT23, 2MASSJ00052423-3721257, NLTT134, NSV15017, PLX5817, PLX5817.00, PM00025-3736, PMJ00054-3721, SAO192348, TIC120461526, TYC6995-1264-1, UBV20691, UBVM27443, WEB60, WISEAJ000529.35-372151.0, YZC2915, Zkh2, [GKL99]1, [RHG95]6, GaiaDR22306965202564506752, GaiaDR32306965202564744064
OBJECT name(s) in headers	GJ1

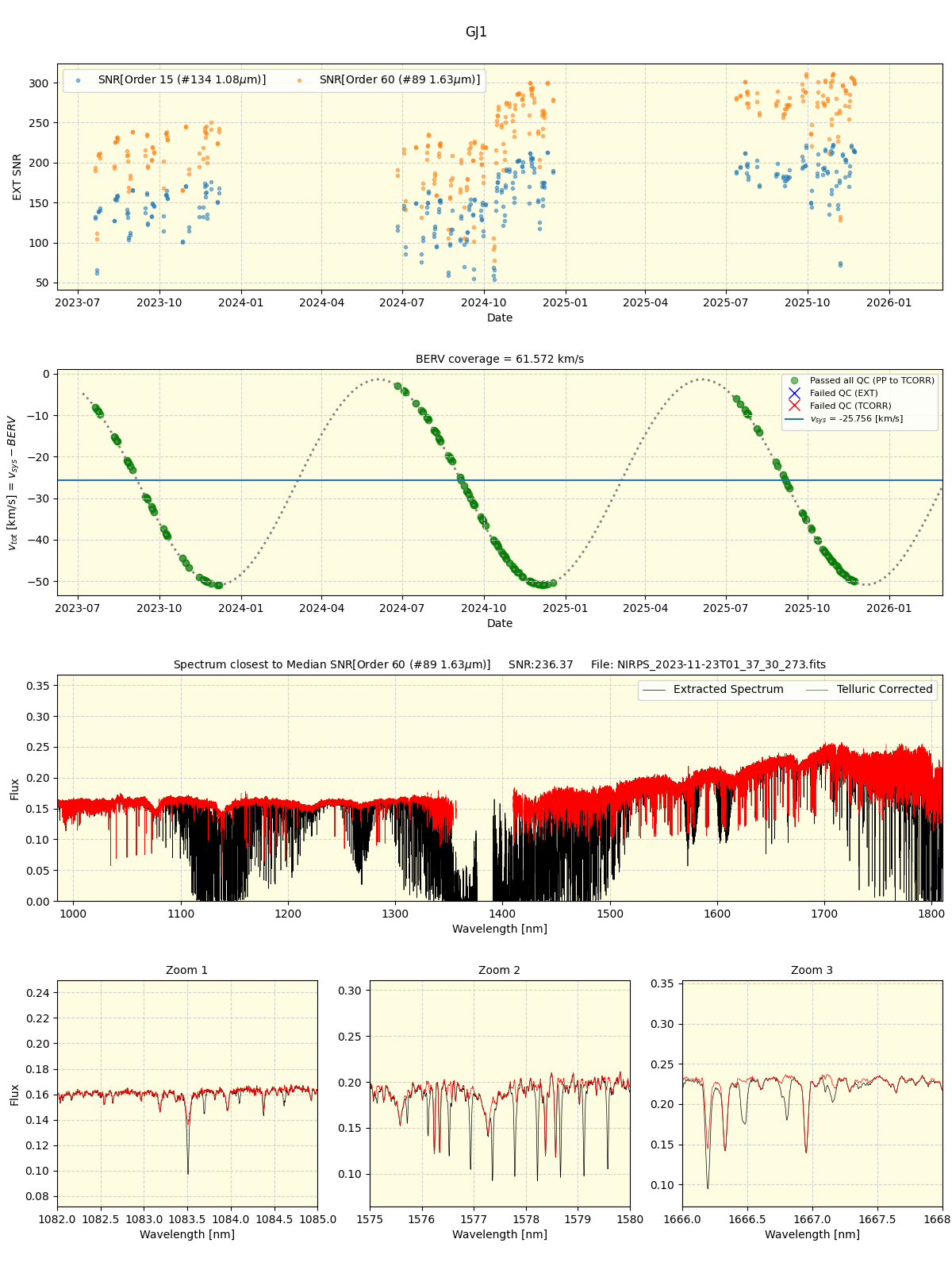

Spectrum

Spectrum Information
DPRTYPES	OBJ_SKY
Total number raw files	122
First raw files	2023-07-20 09:40:23.123
Last raw files	2024-09-16 05:42:58.229
Total number PP files	122
Number PP files passed QC	122
Number PP files failed QC	0
First pp file [Mid exposure]	2023-07-20 09:40:23.123
Last pp file [Mid exposure]	2024-09-16 05:42:58.229
Last processed [pp]	2024-09-16 15:22:54.532
Version [pp]	0.7.290
Total number ext files	122
Number ext files passed QC	122
Number ext files failed QC	0
First ext file [Mid exposure]	2023-07-20 09:40:23.123
Last ext file [Mid exposure]	2024-09-16 05:42:58.229
Last processed [ext]	2024-09-16 15:45:50.147
Version [ext]	0.7.290
Total number tcorr files	122
Number tcorr files passed QC	122
Number tcorr files failed QC	0
First tcorr file [Mid exposure]	2023-07-20 09:40:23.123
Last tcorr file [Mid exposure]	2024-09-16 05:42:58.229
Last processed [tcorr]	2024-09-16 17:02:46.478
Version [tcorr]	0.7.290
Median SNR Y	138.30 \(\pm\) 28.07
Median SNR H	208.71 \(\pm\) 33.03

Request
Extracted 2D spectra
Extracted 1D spectra
Telluric corrected 2D spectra
Telluric corrected 1D spectra
2D Template (after telluric correction)
1D Template (after telluric correction)
Packaged extraction files (e.fits)
Packaged telluric corrected files (t.fits)
Packaged s1d extract+tcorr (s.fits)
Packaged velocity files (v.fits)
Packaged polarimetry files (p.fits)

Spectrum Downloads	File URL	Uploaded
Extracted 2D spectra	ext2d_GJ1_nirps_he_online_udem_file_list.txt	2024-09-16 19:15:24.860
Extracted 1D spectra	ext1d_GJ1_nirps_he_online_udem_file_list.txt	2024-09-16 19:15:24.862
Telluric corrected 2D spectra	tcorr2d_GJ1_nirps_he_online_udem_file_list.txt	2024-09-16 19:15:24.863
Telluric corrected 1D spectra	tcorr1d_GJ1_nirps_he_online_udem_file_list.txt	2024-09-16 19:15:24.864
Extracted 2D header file	ext2d_header_GJ1_nirps_he_online_udem_file.csv	2024-09-16 19:15:24.858

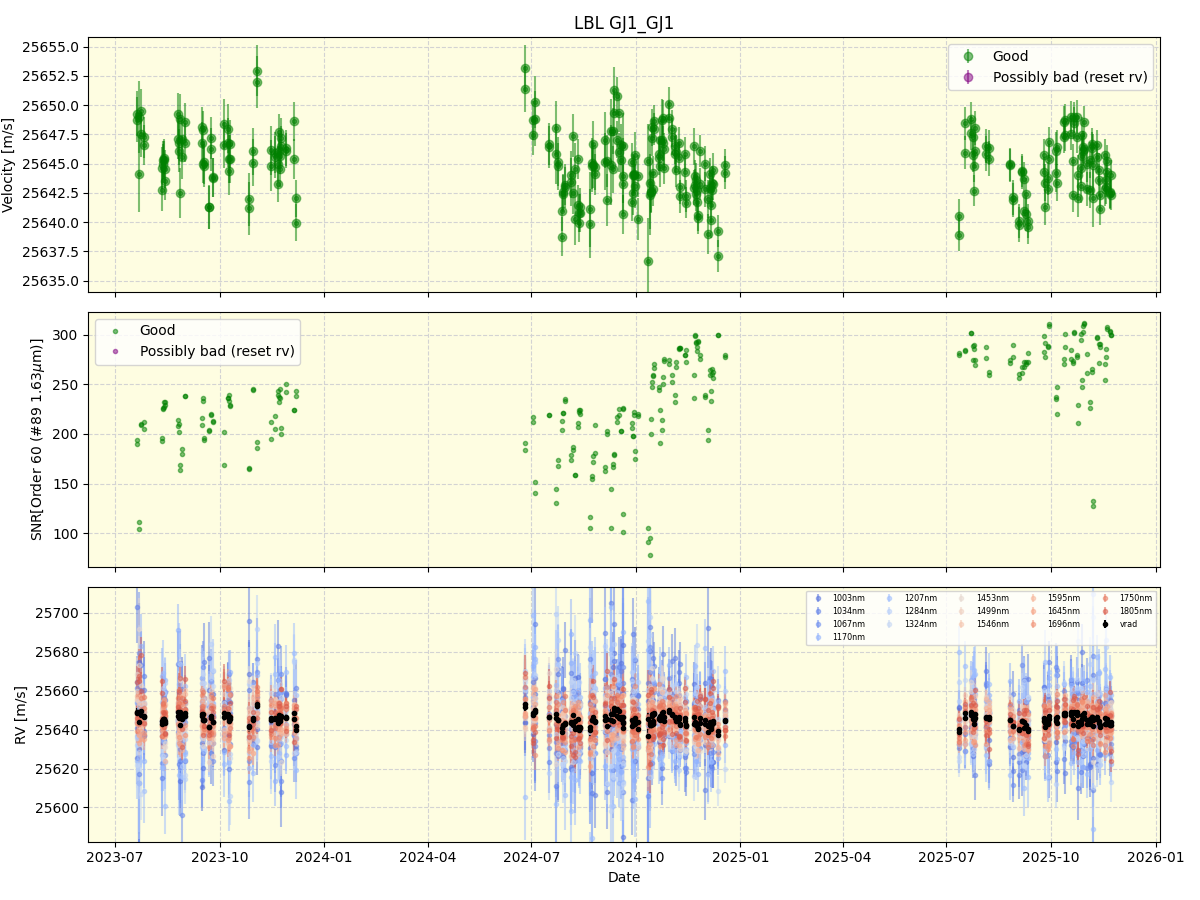

LBL (GJ1_GJ1)

LBL stats
RV Uncertainty lbl.rdb (25, 50, 75 percentile)	1.45, 1.61, 1.79 m/s
RV Absolute Deviation lbl.rdb (25, 50, 75 percentile)	0.91, 1.89, 3.27 m/s
Number of lbl.rdb Measurements	122
Number of lbl.rdb Spurious Low Points	0
Number of lbl.rdb Spurious High Points	0
Number of Nights	61
Number of Reset RV Points	0
Systemic Velocity	25638.60 m/s
Velocity Domain considered valid	25627.92 to 25649.75 m/s
LBL Version	0.63.007

Request
LBL fits files
lbl_rdb files
lbl2_rdb files
lbl_drift files
lbl2_drift files
lbl_fits files

LBL Downloads	File URL	Uploaded
RDB file	lbl_GJ1_GJ1.rdb	2024-09-16 18:29:44.424
RDB2 file	lbl2_GJ1_GJ1.rdb	2024-09-16 18:29:47.863

LBL (GJ1_GJ581)

LBL stats
RV Uncertainty lbl.rdb (25, 50, 75 percentile)	2.69, 2.88, 3.03 m/s
RV Absolute Deviation lbl.rdb (25, 50, 75 percentile)	1.33, 2.89, 4.76 m/s
Number of lbl.rdb Measurements	122
Number of lbl.rdb Spurious Low Points	0
Number of lbl.rdb Spurious High Points	0
Number of Nights	61
Number of Reset RV Points	0
Systemic Velocity	25611.43 m/s
Velocity Domain considered valid	25596.53 to 25627.96 m/s
LBL Version	0.63.007

Request
LBL fits files
lbl_rdb files
lbl2_rdb files
lbl_drift files
lbl2_drift files
lbl_fits files

LBL Downloads	File URL	Uploaded
RDB file	lbl_GJ1_GJ581.rdb	2024-09-16 18:30:57.238
RDB2 file	lbl2_GJ1_GJ581.rdb	2024-09-16 18:30:59.673

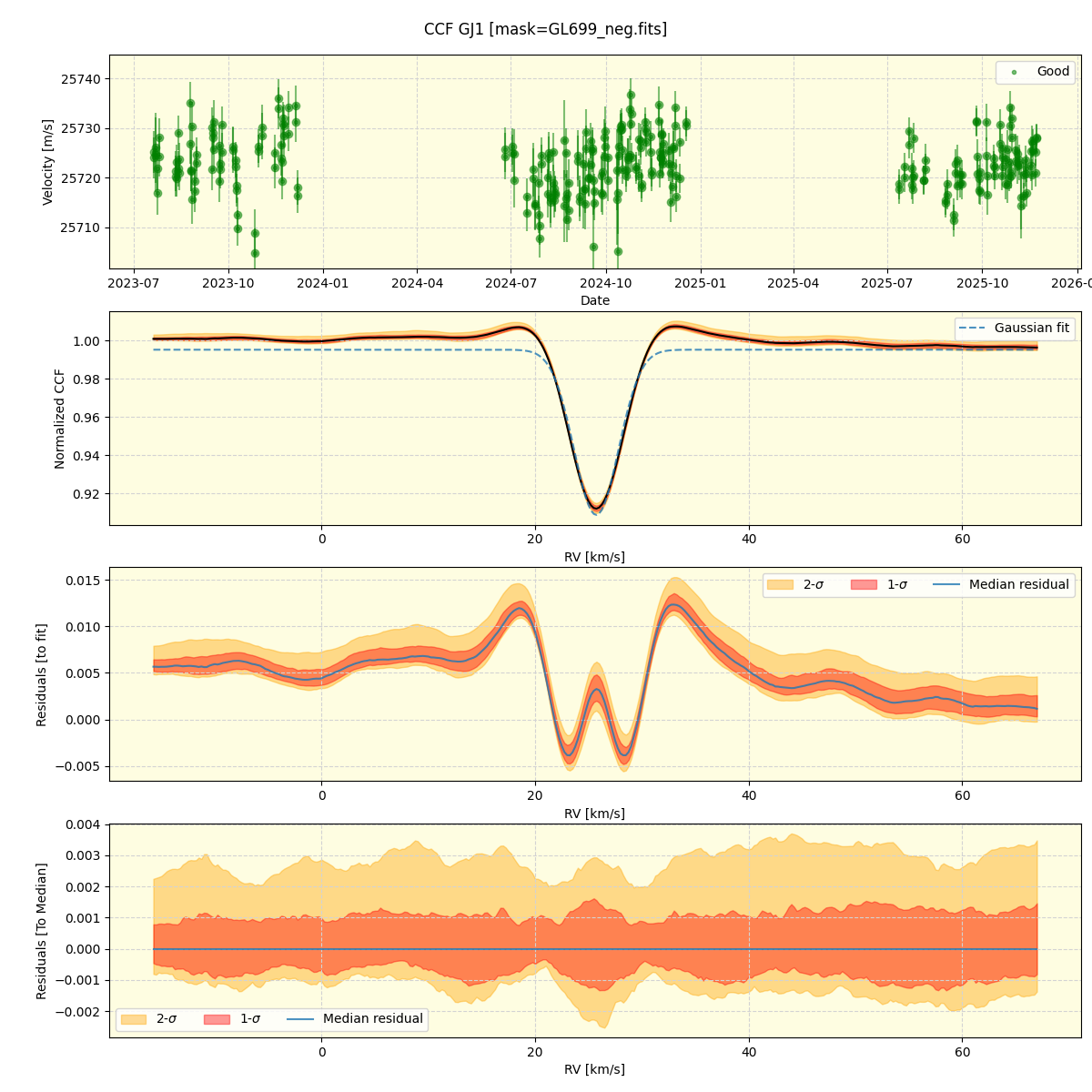

CCF

CCF stats
Mask used	GL699_neg.fits
CCF systemic velocity	25723.54 \(\pm\) 6.68 m/s
CCF FWHM	5198.77 \(\pm\) 32.98 m/s
Number of CCF files Total	122
Number of CCF passed QC	122
Number CCF files failed QC	0
First ccf file [Mid exposure]	2023-07-20 09:40:23.123
Last ccf file [Mid exposure]	2024-09-16 05:42:58.229
Last processed [ccf]	2024-09-16 17:55:40.736
Version [ccf]	0.7.290

Request
CCF files

CCF Downloads	File URL	Uploaded
CCF Table	ccf_GJ1_nirps_he_online_udem_file_list.txt	2024-09-16 19:26:37.721

Time series

Obs Dir	First obs mid	Last obs mid	Number of ext	Number of tcorr	Seeing	Airmass	Mean Exptime	Total Exptime	SNR[Order 15 (#134 1.08um)]	SNR[Order 60 (#89 1.63um)]	DPRTYPEs	ext_files	tcorr_files	Request ext files	Request tcorr files
2023-07-19	2023-07-20 09:40:23.123	2023-07-20 09:42:36.882	2	2	1.270	1.022	122.613	245.225	131.107	191.877	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-07-21	2023-07-22 08:07:32.734	2023-07-22 08:09:46.493	2	2	2.890	1.022	122.613	245.225	63.999	107.616	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-07-23	2023-07-24 05:47:59.068	2023-07-24 05:50:12.827	2	2	2.290	1.253	122.613	245.225	138.616	209.800	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-07-25	2023-07-26 07:29:47.824	2023-07-26 07:32:01.583	2	2	1.640	1.039	122.613	245.225	141.637	208.472	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-10	2023-08-11 07:08:00.585	2023-08-11 07:10:14.343	2	2	2.245	1.014	122.613	245.225	127.507	194.381	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-11	2023-08-12 07:06:34.176	2023-08-12 07:08:47.935	2	2	1.320	1.012	122.613	245.225	154.221	225.624	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-12	2023-08-13 08:17:46.043	2023-08-13 08:19:59.802	2	2	0.985	1.030	122.613	245.225	155.987	229.222	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-13	2023-08-14 07:13:37.886	2023-08-14 07:15:51.645	2	2	0.855	1.010	122.613	245.225	158.358	230.577	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-24	2023-08-25 09:31:54.585	2023-08-25 09:34:08.344	2	2	1.805	1.256	122.613	245.225	138.650	211.332	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-25	2023-08-26 08:22:25.836	2023-08-26 08:24:39.594	2	2	1.850	1.097	122.613	245.225	133.988	206.034	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-26	2023-08-27 06:22:31.372	2023-08-27 06:24:45.130	2	2	2.375	1.010	122.613	245.225	104.832	166.330	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-28	2023-08-29 05:06:23.971	2023-08-29 05:08:37.730	2	2	2.160	1.048	122.613	245.225	111.180	182.054	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-08-30	2023-08-31 05:59:28.824	2023-08-31 06:01:42.583	2	2	1.060	1.011	122.613	245.225	165.366	238.273	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-14	2023-09-15 07:58:29.774	2023-09-15 08:00:43.533	2	2	1.450	1.221	122.613	245.225	139.782	212.292	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-15	2023-09-16 06:34:55.826	2023-09-16 06:37:09.585	2	2	1.310	1.060	122.613	245.225	161.276	234.597	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-16	2023-09-17 06:52:09.306	2023-09-17 06:54:23.064	2	2	1.640	1.090	122.613	245.225	123.342	194.883	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-21	2023-09-22 01:51:37.021	2023-09-22 01:53:50.779	2	2	1.815	1.255	122.613	245.225	132.602	203.251	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-22	2023-09-23 04:33:34.771	2023-09-23 04:35:48.530	2	2	1.950	1.010	122.613	245.225	148.661	219.502	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-09-24	2023-09-25 04:06:10.503	2023-09-25 04:08:24.262	2	2	1.495	1.015	122.613	245.225	145.425	212.757	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-04	2023-10-05 03:59:56.330	2023-10-05 04:02:10.089	2	2	1.890	1.010	122.613	245.225	124.156	185.320	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-07	2023-10-08 05:08:01.017	2023-10-08 05:10:14.776	2	2	1.890	1.059	122.613	245.225	160.022	236.323	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-08	2023-10-09 03:57:27.027	2023-10-09 03:59:40.786	2	2	1.890	1.012	122.613	245.225	161.946	235.908	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-09	2023-10-10 05:05:01.074	2023-10-10 05:07:14.832	2	2	1.890	1.066	122.613	245.225	155.350	228.587	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-26	2023-10-27 01:21:27.000	2023-10-27 01:23:40.759	2	2	1.260	1.042	122.613	245.225	100.873	165.311	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-10-29	2023-10-30 02:54:41.129	2023-10-30 02:56:54.887	2	2	1.260	1.019	122.613	245.225	170.591	244.611	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-02	2023-11-03 04:59:22.701	2023-11-03 05:01:36.459	2	2	1.260	1.264	122.613	245.225	116.929	188.779	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-14	2023-11-15 02:25:36.799	2023-11-15 02:27:50.557	2	2	1.260	1.045	122.613	245.225	138.499	203.305	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-18	2023-11-19 02:47:29.138	2023-11-19 02:49:42.897	2	2	1.260	1.095	122.613	245.225	138.064	211.437	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-20	2023-11-21 01:37:39.535	2023-11-21 01:39:53.293	2	2	1.260	1.025	122.613	245.225	171.635	241.428	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-21	2023-11-22 03:20:01.399	2023-11-22 03:22:15.157	2	2	1.260	1.190	122.613	245.225	159.603	234.616	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-22	2023-11-23 01:38:31.579	2023-11-23 01:40:45.337	2	2	1.260	1.031	122.613	245.225	167.625	240.841	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-23	2023-11-24 02:12:46.103	2023-11-24 02:14:59.861	2	2	1.260	1.072	122.613	245.225	132.619	202.874	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-11-27	2023-11-28 01:45:56.127	2023-11-28 01:48:09.886	2	2	1.260	1.058	122.613	245.225	171.491	245.829	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-12-04	2023-12-05 03:40:31.584	2023-12-05 03:42:45.343	2	2	1.260	1.468	122.613	245.225	150.385	224.058	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2023-12-06	2023-12-07 02:34:00.331	2023-12-07 02:36:14.090	2	2	1.260	1.227	122.613	245.225	164.985	240.650	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-06-24	2024-06-25 08:37:01.217	2024-06-25 08:39:14.976	2	2	1.260	1.109	122.613	245.225	118.076	187.104	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-01	2024-07-02 09:47:12.784	2024-07-02 09:49:26.542	2	2	1.260	1.012	122.613	245.225	144.104	214.252	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-03	2024-07-04 09:52:05.318	2024-07-04 09:54:19.077	2	2	1.260	1.010	122.613	245.225	90.041	146.430	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-15	2024-07-16 08:02:25.344	2024-07-16 08:04:39.103	2	2	1.260	1.042	122.613	245.225	149.137	219.331	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-21	2024-07-22 08:54:47.592	2024-07-22 08:57:01.351	2	2	1.260	1.010	122.613	245.225	80.582	137.864	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-23	2024-07-24 06:12:34.765	2024-07-24 06:14:48.523	2	2	1.260	1.174	122.613	245.225	104.360	170.712	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-27	2024-07-28 07:46:26.139	2024-07-28 07:48:39.898	2	2	1.260	1.019	122.613	245.225	140.942	208.620	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-28	2024-07-29 05:24:43.965	2024-07-29 05:26:57.724	2	2	1.260	1.256	122.613	245.225	149.618	221.121	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-07-29	2024-07-30 06:51:54.020	2024-07-30 06:54:07.779	2	2	1.260	1.059	122.613	245.225	163.046	234.318	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-04	2024-08-05 09:50:42.985	2024-08-05 09:52:56.743	2	2	1.260	1.111	122.613	245.225	109.336	176.148	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-05	2024-08-06 08:45:56.732	2024-08-06 08:48:10.490	2	2	1.260	1.032	122.613	245.225	118.665	185.722	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-07	2024-08-08 05:35:17.745	2024-08-08 05:37:31.503	2	2	1.260	1.125	122.613	245.225	94.828	159.027	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-10	2024-08-11 07:39:14.916	2024-08-11 07:41:28.675	2	2	1.260	1.010	122.613	245.225	140.186	209.334	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-11	2024-08-12 06:58:40.719	2024-08-12 07:00:54.477	2	2	1.260	1.014	122.613	245.225	152.309	223.015	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-12	2024-08-13 06:36:57.825	2024-08-13 06:39:11.584	2	2	1.260	1.023	122.613	245.225	151.426	222.254	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-20	2024-08-21 10:02:55.837	2024-08-21 10:05:09.595	2	2	1.260	1.321	122.613	245.225	61.107	110.694	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-22	2024-08-23 06:27:04.513	2024-08-23 06:29:18.272	2	2	1.260	1.011	122.613	245.225	97.436	156.242	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-23	2024-08-24 07:20:25.583	2024-08-24 07:22:39.342	2	2	1.260	1.022	122.613	245.225	113.767	175.202	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-08-25	2024-08-26 03:50:27.380	2024-08-26 03:52:41.139	2	2	1.260	1.207	122.613	245.225	128.121	194.749	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-03	2024-09-04 03:54:33.731	2024-09-04 03:56:47.489	2	2	1.260	1.115	122.613	245.225	103.236	165.016	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-04	2024-09-05 07:23:51.613	2024-09-05 07:26:05.372	2	2	1.260	1.071	122.613	245.225	131.993	201.624	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-08	2024-09-09 03:34:05.958	2024-09-09 03:36:19.717	2	2	1.260	1.117	122.613	245.225	83.952	124.782	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-10	2024-09-11 08:31:58.580	2024-09-11 08:34:12.339	2	2	1.260	1.289	122.613	245.225	102.696	168.309	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-11	2024-09-12 03:52:19.737	2024-09-12 03:54:33.495	2	2	1.260	1.068	122.613	245.225	112.539	179.479	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-13	2024-09-14 04:41:22.954	2024-09-14 04:43:36.713	2	2	1.260	1.018	122.613	245.225	143.578	214.310	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
2024-09-15	2024-09-16 05:40:44.470	2024-09-16 05:42:58.229	2	2	1.260	1.018	122.613	245.225	151.152	222.179	OBJ_SKY	2 [download]	2 [download]	Extracted 2D files	Telluric corrected 2D files
